150A-4 TL 3/8 FB MOR

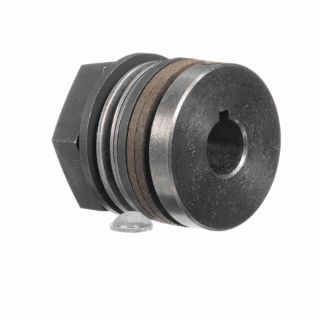

Morse® 190385 TL Series Torque Limiter, 3/8 in Straight Bore, 1-1/2 in OD, 1 to 15 in-lb Torque
Manufacturer: Regal Rexnord
Manufacturer part number: 190385
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Morse®

Description

The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.
Morse® Torque Limiter, Series: TL Series, Straight Bore, 3/8 in Bore Dia, 1-1/2 in Outside Dia, 1-1/2 in Overall Length, 1 to 15 in-lb, 1000 rpm Maximum

Application

Agriculture and Material Handling

Features

  • Simple design
  • Economical, compact, dependable and durable
  • Easy adjustment
  • Wide torque range
  • Minimum maintenance
  • Safe, non-asbestos, no-lead pads
  • Friction facings
  • Model 150

Includes

Cast Iron Hub and Plate and Steel Bushing

Specifications

Bore Diameter:3/8 in
Bore Type:Straight
Country of Origin:US
Maximum Speed:1000 rpm
Outside Diameter:1-1/2 in
Overall Length:1-1/2 in
Series:TL Series
Torque Rating:1 to 15 in-lb
