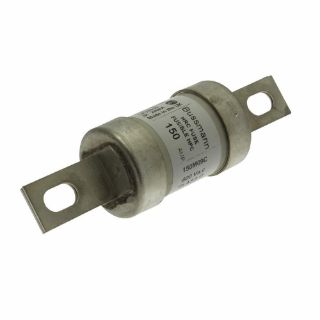

Actual Product May Vary From Image

150M09C BSF

Name: 150M09C BSF
Brand: Bussmann
SKU: 150M09C BSF
Availability: OutOfStock

Bussmann 150M09C HRC Form II Current Limiting Fuse, 150 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 150M09C

Availability: Expected Leadtime 40 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

HRC Form II Current Limiting

Description

Bussmann Fuse, HRC Form II Current Limiting, Series: M09C, 150 A, 600 VAC/250 VDC, 200 kA Interrupt, Center Blade Terminal, Stud Mounting, Cartridge Body, Ceramic, 1.5 in Dia x 5.38 in L Body

Application

Protect motor control circuits, together with contactors and overload protection relays

Standards

CE Certified | CSA C22.2 No. 106M1992 | BS 88:2 | IEC 60269:2 | IEC 60947-4

Specifications

Amperage Rating:	150 A
Body Size:	1.5 in Dia x 5.38 in L
Body Type:	Cartridge
Country of Origin:	GB
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	M09C
Terminal Type:	Center Blade
Voltage Rating:	600 VAC/250 VDC
