151 60/1 A WR HUB

Name: 151 60/1 A WR HUB
Brand: Hub City
SKU: 151 60/1 A WR HUB
Availability: OutOfStock

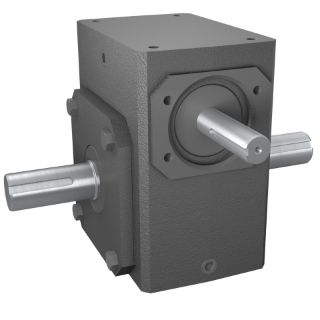

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-00610

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W150PCX, 60:1 Gear Ratio, 0.33 hp Input, Shaft Input, Shaft Output, 0.625 in Dia x 1.76 in L Input, 0.75 in Dia x 2.11 in L Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 359 in-lb Output, 1.54 in Centre Distance, 3/16 x 3/32 in Input/Output Keyway, 51.3 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8.62 in W x 5.375 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1.54 in
Dimensions:	8.62 in W x 5.375 in H
Efficiency:	51.3 %
Gear Ratio:	60:1
Horsepower:	0.33 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	29.2 rpm
Output Size:	0.75 in Dia x 2.11 in L
Output Type:	Shaft
Series:	W150PCX
Torque Rating:	359 in-lb Output
