15104-162T1 BSF

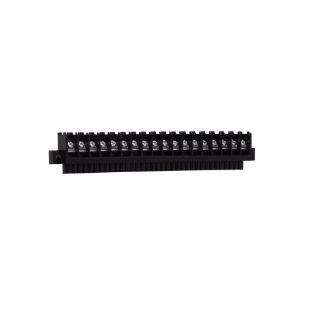

Picture of 15104-162T1 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
15104-162T1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$73.87 / EA

Description

Brand Name

Bussmann

Description

Bussmann PCB Solder Terminals & Terminal Strip, Edge Connector Conductor, 95 deg C, Thermoplastic, 6.75 in L x 1.31 in W x 0.62 in H

Standards

CSA Certified

Features

  • Special Features: 1 sided board, 45 deg right angle mount, pan head screw with wire clamp
  • Center Spacing: 0.375 in
  • Base Material: Thermoplastic
  • Connection Type: #6 to 32 TPI Screw, Pressure Plate
  • Contact Material: Bright Tin-Plated Phosphor
  • Wire Size: #22 to 12 awg
  • Weight: 0.1 lbs
  • Voltage: 300 V
  • Torque: 12 lbs-in
  • Spacing: 0.375 in
  • Amperage: 10 A
  • Color: Black

Specifications

Conductor Type:Edge Connector
Country of Origin:MX
Dimensions:6.75 in L x 1.31 in W x 0.62 in H
Material:Thermoplastic
Temperature Rating:95 deg C
