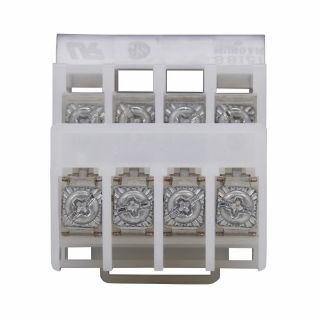

Actual Product May Vary From Image

15188-3R BSF

Name: 15188-3R BSF
Brand: Bussmann
SKU: 15188-3R BSF
Availability: OutOfStock

Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount

Manufacturer: Bussmann

Manufacturer part number: 15188-3R

Availability: Expected Leadtime 34 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Depluggable Reverse Wiring

Description

Eaton's Bussmann series panel mount terminal blocks are available in double row terminal blocks and multi-pole terminal blocks. Double row terminal blocks are made up to 36-poles and available in a variety of voltage and ampacity ratings. Multi-pole panel mount terminal blocks provide a compact, high density circuit connection solution without the necessity of a mounting rail. These products are designed to be nested together to form one string of circuit connections.

Bussmann Disconnect Terminal Block, Depluggable Reverse Wiring, Series: 15188, 600 VAC, 30 A, 3 Pole, 16 to 12 AWG Copper Wire, Tin Plated Copper Alloy Terminal, 3/8 in Spacing, 12 in-lb, DIN Rail Mount, #6-32 Screw, 105 deg C, Thermoplastic, White, 1.19 in H x 1.94 in W

Standards

UL File No. E62622 | CSA File No. 47235 | UL 94-V-2 Flammability Rating

Features

These depluggable terminal blocks provide a simple depluggable option for panel wiring applications with the convenience of quick, easy, snap-on installation
#6-32 TPI zinc plated steel phillips slot screw

Specifications

Amperage Rating:	30 A
Color:	White
Connection Type:	#6-32 Screw
Country of Origin:	MX
Dimensions:	1.19 in H x 1.94 in W
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	15188
Spacing:	3/8 in
Temperature Rating:	105 deg C
Terminal Type:	Tin Plated Copper Alloy
Torque Rating:	12 in-lb
Voltage Rating:	600 VAC
Wire Size:	16 to 12 AWG Copper
