Actual Product May Vary From Image

15188-3RS BSF

Name: 15188-3RS BSF
Brand: Bussmann
SKU: 15188-3RS BSF
Availability: OutOfStock

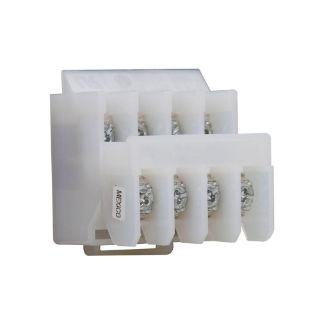

Bussmann 15188-3RS Depluggable Reverse Wiring Disconnect Terminal Block With Locking Snap, 600 V, 30 A, 16 to 12 AWG Wire, 3 Poles, DIN Rail Mount

Manufacturer: Bussmann

Manufacturer part number: 15188-3RS

Availability: Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Depluggable Reverse Wiring

Description

Bussmann Disconnect Terminal Block, Depluggable Reverse Wiring, Series: 15188, 600 V, 30 A, 3 Pole, 16 to 12 AWG Wire, Tin Plated Copper Alloy Terminal, 3/8 in Spacing, 12 in-lb Torque, DIN Rail Mounting, #6-32 Screw Connection, 105 deg C, Copper/Steel/Thermoplastic, White, 1.94 in W x 1.19 in H Dimensions

Application

Stationary Machine Equipment in Factory - Robotics Applications

Standards

CSA File No. 47235 | UL 94 V-2 Flammability Rating | UL File No. E62622

Features

These depluggable terminal blocks provide a simple depluggable option for panel wiring applications with the convenience of quick, easy, snap-on installation
#6-32 TPI zinc plated steel Phillips® slot screw

Specifications

Amperage Rating:	30 A
Color:	White
Connection Type:	#6-32 Screw
Country of Origin:	MX
Dimensions:	1.94 in W x 1.19 in H
Material:	Copper/Steel/Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	15188
Spacing:	3/8 in
Temperature Rating:	105 deg C
Terminal Type:	Tin Plated Copper Alloy
Torque Rating:	12 in-lb
Voltage Rating:	600 V
Wire Size:	16 to 12 AWG
