Actual Product May Vary From Image

1533R WOO

Name: 1533R WOO
Brand: Molex/Woodhead
SKU: 1533R WOO
Availability: OutOfStock

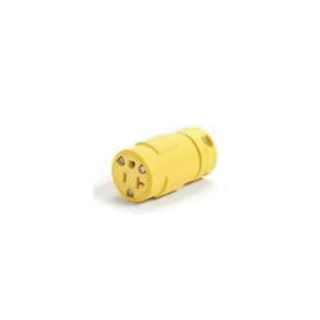

Woodhead® Super-Safeway™ 1533R 130144 Female Heavy Duty Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires

Manufacturer: Molex/Woodhead

Manufacturer part number: 1533R

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Female Heavy Duty

Description

Woodhead® Super-Safeway™ Straight Blade Connector, Female Heavy Duty, Series: 130144, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20, Industrial Grade, -40 to 75 deg C, Screw Terminal, NEoTEX Paracril OZO Rubber

Standards

UL E10176 | CSA LR6837

Features

NEo-TEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord

Specifications

Amperage Rating:	20 A
Country of Origin:	MX
Grade:	Industrial
Material:	NEoTEX Paracril OZO Rubber
NEMA Rating:	NEMA 5-20
Number of Poles:	2
Number of Wires:	3
Series:	130144
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
