Actual Product May Vary From Image

15.5CAVH0.5E BSF

Name: 15.5CAVH0.5E BSF
Brand: Bussmann
SKU: 15.5CAVH0.5E BSF
Price: 1,047.05 USD
Availability: OutOfStock

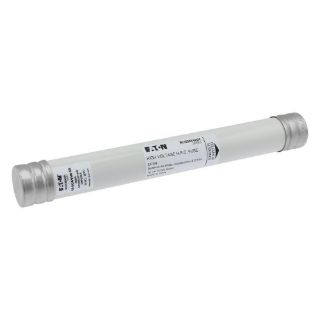

Bussmann 15.5CAVH0.5E CAV 1-Barrel Current Limiting Fuse, 0.5 A, 15.5 kV, 80 kA Interrupt, Class: E

Manufacturer: Bussmann

Manufacturer part number: 15.5CAVH0.5E

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$1,047.05

Qty:

Product Details

Brand Name

Bussmann

Type

1-Barrel Current Limiting

Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Bussmann Fuse, 1-Barrel Current Limiting, Series: CAV, Non-Indicating, 0.5 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 12.87 in L Body

Application

For primary protection of medium voltage potential transformers and small medium voltage service/control transformers

Standards

IEC 60282-1

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
Sized for retrofitting in existing hardware
Space saving size

Specifications

Amperage Rating:	0.5 A
Body Size:	1.63 in Dia x 12.87 in L
Class:	E
Country of Origin:	IN
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	80 kA
Mounting Type:	Bolted-On
Series:	CAV
Terminal Type:	Ferrule
Voltage Rating:	15.5 kV
