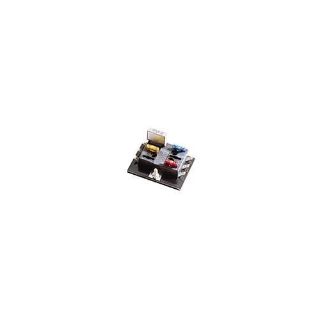

Picture of 15600-04-20 BSF
Actual Product May Vary From Image

15600-04-20 BSF

Bussmann ATC® 15600-04-20 4-Position Blade Fuse Panel, 32 VAC, 30 A, 6 to 4 AWG Wire
Manufacturer: Bussmann
Manufacturer part number: 15600-04-20
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

4-Position

Description

Bussmann ATC® Blade Fuse Panel, 4-Position, Series: 15600, 32 VAC, 30 A, Quick-Connect, 6 to 4 AWG Wire, Surface Mount, -20 to 150 deg F, Thermoplastic, Black, 3.37 in L x 2.47 in W x 0.83 in H

Features

  • A single, common power input makes it simple to wire for multiple circuits
  • Molded of high grade thermoplastic, for superior performance
  • Quick connect terminals for easy installation
  • Recessed fuse contacts provide finger safe protection

Specifications

Amperage Rating:30 A
Color:Black
Connection Type:Quick-Connect
Country of Origin:MX
Dimensions:3.37 in L x 2.47 in W x 0.83 in H
Material:Thermoplastic
Mounting Type:Surface
Series:15600
Temperature Rating:-20 to 150 deg F
Voltage Rating:32 VAC
Wire Size:6 to 4 AWG
