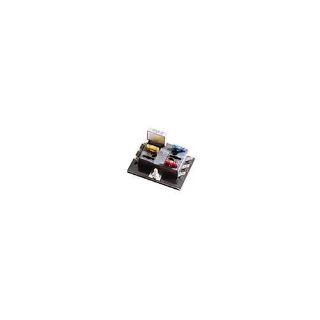

Actual Product May Vary From Image

15600-06-11 BSF

Name: 15600-06-11 BSF
Brand: Bussmann
SKU: 15600-06-11 BSF
Availability: OutOfStock

Bussmann 15600-06-11 15600 ATC® 6-Fuse 11-Position Blade Fuse Panel, 32 VAC, 30 A, 16 to 12 AWG Wire

Manufacturer: Bussmann

Manufacturer part number: 15600-06-11

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

6-Fuse 11-Position Blade

Description

The 15600 ATC® fuse panel is a compact, yet rugged, power distribution module. It is available in a single or dual internal buss electrical configuration featuring an optional ground pad terminal strip. The 15600 fuse panel is surface mounted, uses convenient quick connect terminals and is recommended as a supplemental power distribution module. It can be used to accompany main PDMs such as the Cooper Bussmann 31000/32000 series VEC/DVEC, 15710 series RTA and the 1540X Series RFRM.

Bussmann Fuse Panel, 6-Fuse 11-Position Blade, Series: 15600 ATC®, 32 VAC, 30 A, Quick Connect/Single Stud, 16 to 12 AWG Wire, Surface Mount, -20 to 150 deg F, For Use With: Cooper Bussmann 31000/32000 Series VEC/DVEC, 15710 Series RTA and 1540X Series Rear Fed Fuse and Relay Module (RFRM), Thermoplastic, Black, 2.47 in L x 3.37 in W x 0.83 in H

Features

Nuts assembled

Specifications

Amperage Rating:	30 A
Color:	Black
Connection Type:	Quick Connect/Single Stud
Country of Origin:	MX
Dimensions:	2.47 in L x 3.37 in W x 0.83 in H
Material:	Thermoplastic
Mounting Type:	Surface
Series:	15600 ATC®
Suitable For Use With:	Cooper Bussmann 31000/32000 Series VEC/DVEC, 15710 Series RTA and 1540X Series Rear Fed Fuse and Relay Module (RFRM)
Temperature Rating:	-20 to 150 deg F
Voltage Rating:	32 VAC
Wire Size:	16 to 12 AWG
