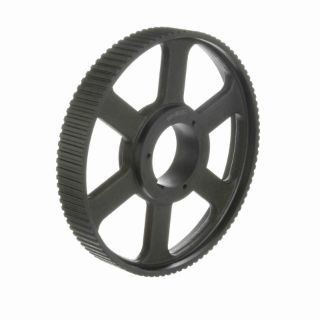

Actual Product May Vary From Image

156HR300 BRN

Name: 156HR300 BRN
Brand: Regal Rexnord
SKU: 156HR300 BRN
Availability: OutOfStock

Browning® Gearbelt® 1057561 Type 14 Synchronous Timing Pulley, 1-1/8 to 3-3/4 in Split Taper Bore, 24.774 in OD, 156 Grooves, 24.828 in Dia Pitch, 3-1/2 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1057561

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 14

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 14, Split Taper Bore, 1-1/8 to 3-3/4 in Bore Dia, 24.774 in Outside Dia, 24.828 in, 156 Grooves, 1/2 in Pitch, 3-1/2 in Face Width, 5-3/8 in Hub Dia, 1/8 in Hub Projection, R1 Bushing, 3-29/32 in Overall Length, For Use With: 3 in W Type H300 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range
Without Flange

Specifications

Bore Diameter:	1-1/8 to 3-3/4 in
Bore Type:	Split Taper
Bushing Type:	R1
Country of Origin:	US
Face Width:	3-1/2 in
Hub Diameter:	5-3/8 in
Hub Projection:	1/8 in
Number of Grooves:	156
Outside Diameter:	24.774 in
Overall Length:	3-29/32 in
Pitch:	1/2 in
Pitch Diameter:	24.828 in
Suitable For Use With:	3 in W Type H300 Belt
