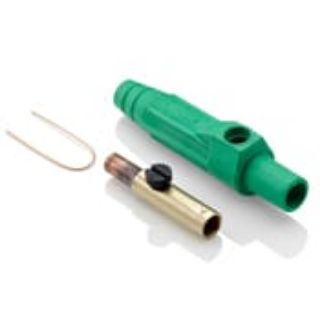

Actual Product May Vary From Image

15D24-G LEV

Name: 15D24-G LEV
Brand: Leviton Manufacturing
SKU: 15D24-G LEV
Availability: OutOfStock

Leviton® 15D24-G 15 Series Cam Type Detachable Taper Nose Plug With 15D22-C Contact and 15SDF-48G Insulator, 600 VAC, 140 A, 8 to 4 AWG Wire, Crimped/Female Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 15D24-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Detachable Taper Nose

Description

Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.

Leviton® Plug, Cam Type Detachable Taper Nose, Series: 15 Series, 600 VAC, 140 A, 8 to 4 AWG Wire, Crimped/Female Connection, Brass Contact, Santoprene™ TPV Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, 0.88 in Dia, Commercial Grade, Green, 0.88 in Dia x 4-1/2 in L Dimensions

Application

Commercial and Industrial, Carnivals and Theme Parks and Entertainment Industry Applications

Standards

UL File No E13399 | CSA File No. 152105

Features

Taper nose ECT mini cam type plugs, receptacles and connectors are tough and reliable
Self compensating for wear
Insulated by shatter and crack-resistant Santoprene™ TPV making it ideal for both outdoor and indoor applications
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design
Copper wire strain-relief
Locking and reinforcing ring won't melt, break or crack
NEMA 3R rated (rainproof) for use outdoors
600 VAC voltage rating

Specifications

Amperage Rating:	140 A
Color:	Green
Connection Type:	Crimped/Female
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	0.88 in Dia x 4-1/2 in L
Housing Material:	Santoprene™ TPV
NEMA Rating:	NEMA 3R
Series:	15 Series
Specifications:	1-Pole, 0.88 in Dia, Commercial Grade
Voltage Rating:	600 VAC
Wire Size:	8 to 4 AWG
