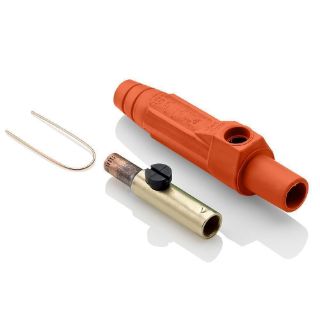

Picture of 15D24-O LEV
Actual Product May Vary From Image

15D24-O LEV

Leviton® 15D24-O Cam Type Detachable Female Taper Nose Plug, 600 VAC, 140 A, 8 to 4 AWG Wire, Crimped Connection, NEMA 3R NEMA Rating
Manufacturer: Leviton Manufacturing
Manufacturer part number: 15D24-O
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Cam Type Detachable Female Taper Nose

Description

Leviton® Plug, Cam Type Detachable Female Taper Nose, Series: 15 Series, 600 VAC, 140 A, 8 to 4 AWG Wire, Crimped, Brass Contact, TPV Housing, NEMA 3R, 1-Pole, Orange

Application

Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding and Repair and Other Temporary Power Applications, Entertainment and Movie Industry, Concerts and Theme Parks, Carnival Equipment and Conventions Applications

Standards

CSA Certified | UL Listed

Features

  • Color coded insulating sleeves for fast and easy phase identification
  • High conductivity positive, vibration proof connection provided by double cam design
  • Shatter and crack proof - high durometer thermoplastic elastomer (TPV) or neoprene rubber
  • Self compensating for wear - slit and cam in male contact provides spring action for longer usage
  • Hard thermoplastic screw provides strength and durability
  • Intermateable and with competitive cam type products can be retrofitted to existing locations and power distribution systems

Specifications

Amperage Rating:140 A
Color:Orange
Connection Type:Crimped
Contact Material:Brass
Country of Origin:MX
Housing Material:TPV
NEMA Rating:NEMA 3R
Series:15 Series
Specifications:1-Pole
Voltage Rating:600 VAC
Wire Size:8 to 4 AWG
