Actual Product May Vary From Image

15R21-W LEV

Name: 15R21-W LEV
Brand: Leviton Manufacturing
SKU: 15R21-W LEV
Availability: OutOfStock

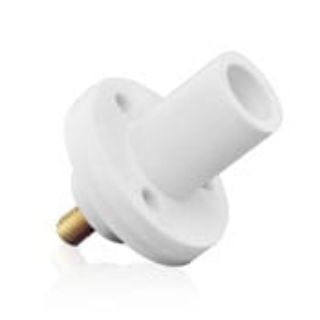

Leviton® 15R21-W 15 Series Male Single Pole Cam Receptacle, 600 VAC, 140 A, 8 to 4 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 15R21-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Male

Description

Leviton's 15 Series Taper Nose mini-cam plugs, receptacles and connectors are tough and reliable. Primary applications include carnivals and theme parks, as well as the entertainment industry

Leviton® Single Pole Cam Receptacle, Male, Series: 15 Series, 600 VAC, 140 A, 8 to 4 AWG Wire, Threaded/Stud, Brass Contact, Santoprene TPV Housing, NEMA 3R, Panel Mount, 3 Hole, White, 1.86 in Dia x 2.63 in L

Application

Commercial and Industrial Applications

Standards

CSA 152105 Certified | UL File No. E13399

Features

Santoprene TPV insulator is shatter and crack proof
Color-coded insulators for easy phase identification
Can be retrofitted to existing locations and power distribution systems
Hard thermoplastic screw head provides strength and durability
Tapperd nose with 90 deg angled elevation

Specifications

Amperage Rating:	140 A
Color:	White
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.86 in Dia x 2.63 in L
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	15 Series
Specifications:	3 Hole
Voltage Rating:	600 VAC
Wire Size:	8 to 4 AWG
