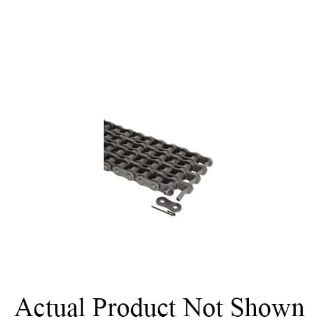

Actual Product May Vary From Image

160-8C 10FT MOR

Name: 160-8C 10FT MOR
Brand: Regal Rexnord
SKU: 160-8C 10FT MOR
Availability: OutOfStock

Morse® 371962 Cottered Standard Duty Roller Chain, 10 ft OAL, 2 in Pitch, 1-1/8 in Dia x 1-1/4 in W Roller, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 371962

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Cottered Standard Duty

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Cottered Standard Duty, 2 in Pitch, 0.562 in Pin Diameter, 18.657 in Pin Length, 1-1/8 in Roller Diameter, 1-1/4 in Roller Width, 1.866 in Plate Height, 1/4 in Plate Thickness, 1 Links, 8 Strands, 464000 lb Tensile Strength, 10 ft Overall Length, Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Far exceeds ANSI performance standard
Rigid manufacturing processes result in a fully-featured chain
Unmatched quality and performance

Specifications

Country of Origin:	CN
Material:	Steel
Number of Links:	1
Number of Strands:	8
Overall Length:	10 ft
Pin Diameter:	0.562 in
Pin Length:	18.657 in
Pitch:	2 in
Plate Height:	1.866 in
Plate Thickness:	1/4 in
Roller Diameter:	1-1/8 in
Roller Width:	1-1/4 in
Tensile Strength:	464000 lb
