16002-A-Z FAG

Name: 16002-A-Z FAG
Brand: INA
SKU: 16002-A-Z FAG
Availability: OutOfStock

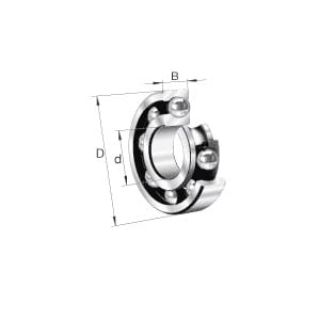

FAG 16002-A-Z 160 Series Deep Groove Ball Bearing, 15 mm Dia Bore, 32 mm OD, 8 mm W, 5900 N Dynamic/2850 N Static/144 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 16002-A-Z

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 160 Series, 15 mm Bore, 32 mm OD, 8 mm Width, Single Shield Closure, 5900 N Dynamic/2850 N Static/144 N Fatigue Load, Metal Seal, 33500 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 625-1

Features

Gap seal on one side

Specifications

Bore Diameter:	15 mm
Closure Type:	Single Shield
Load Capacity:	5900 N Dynamic/2850 N Static/144 N Fatigue
Maximum Speed:	33500 rpm
Outside Diameter:	32 mm
Seal Material:	Metal
Series:	160 Series
Temperature Rating:	-30 to 120 deg C
Width:	8 mm
