16004-A-C3 FAG

Name: 16004-A-C3 FAG
Brand: INA
SKU: 16004-A-C3 FAG
Price: 28.66 USD
Availability: OutOfStock

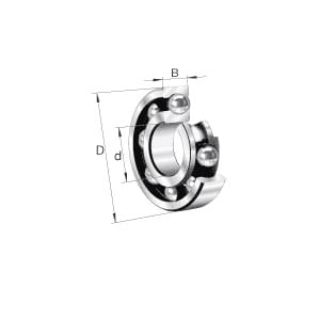

FAG 16004-A-C3 160 Series Deep Groove Ball Bearing, 20 mm Dia Bore, 42 mm OD, 1 Row, 8 mm W, 7400 N Dynamic/4100 N Static/207 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 16004-A-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$28.66

Qty:

Product Details

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 160 Series, 20 mm Bore Dia, 42 mm Outside Dia, 1 Row, 8 mm W, Open Closure, 7400 N Dynamic/4100 N Static/207 N Fatigue, Steel Cage, 26000 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

C3 radial internal clearance

Specifications

Bore Diameter:	20 mm
Cage Material:	Steel
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	7400 N Dynamic/4100 N Static/207 N Fatigue
Maximum Speed:	26000 rpm
Number of Rows:	1
Outside Diameter:	42 mm
Series:	160 Series
Temperature Rating:	120 deg C
Width:	8 mm
