Actual Product May Vary From Image

16006-A-2Z FAG

Name: 16006-A-2Z FAG
Brand: INA
SKU: 16006-A-2Z FAG
Price: 38.01 USD
Availability: OutOfStock

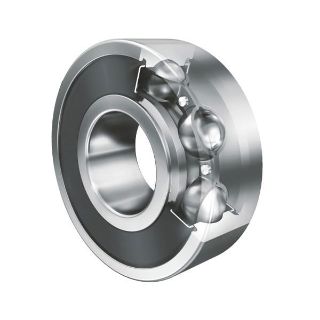

FAG 16006-A-2Z Deep Groove Ball Bearing, 30 mm Dia Bore, 55 mm OD, 1 Row, 9 mm W, 11900 N Load

Manufacturer: INA

Manufacturer part number: 16006-A-2Z

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$38.01

Qty:

Product Details

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.

FAG Deep Groove Ball Bearing, Series: 160, 30 mm Bore, 55 mm OD, 1 Rows, 9 mm Width, Sealed Closure, 11900 N Load, Rubber Seal, Sheet Steel Cage, 15700 rpm Maximum, -30 to 120 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

Bearing arrangement must be operated with very low friction
High demands are made on the sealing of the bearing, without increasing heat generation
Bearing position is to be designed particularly economically
Non-contact sealing shield on both sides
11900 N dynamic/7400 N static

Specifications

Bore Diameter:	30 mm
Cage Material:	Sheet Steel
Closure Type:	Sealed
Country of Origin:	DE
Load Capacity:	11900 N
Maximum Speed:	15700 rpm
Number of Rows:	1
Outside Diameter:	55 mm
Seal Material:	Rubber
Series:	160
Temperature Rating:	-30 to 120 deg C
Width:	9 mm
