Actual Product May Vary From Image

16012 TKN

Name: 16012 TKN
Brand: Timken
SKU: 16012 TKN
Price: 141.03 USD
Availability: OutOfStock

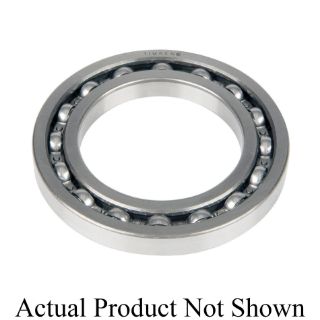

ISO Deep Groove Radial Ball Bearing

Manufacturer: Timken

Manufacturer part number: 16012

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$141.03

Qty:

Product Details

Brand Name

Timken

Description

Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

ISO Deep Groove Radial Ball Bearing | 60 mm 2.4 in Bore | 95 mm 3.7 in OD

Features

Super finished raceways
Quiet operations
ISO standard interchangeable dimensions
Electric Motor Quality (EMQ)
Narrow series design has a smaller width, relative to standard designs, for uses in space constrained applications

Specifications

Bearing Material:	STEEL
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	2.3622
Bore Size (ID) - mm:	60
Bore Type:	Straight
Closure (Seal) type:	Open
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	4473.69795461948
Fillet Radius - Inch:	0.0236220472440945
Fillet Radius - Millimeter:	1
Inner Ring Width - Inch:	0.433070866141732
Inner Ring Width - Millimeter:	11
Internal Clearance:	C0
Load Rating UOM:	LB
Lubrication Hole/Groove:	No
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/deep-groove/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Operating RPM (Grease):	5400
Maximum Operating RPM (Oil):	7800
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	3.7402
Outer Diameter - mm:	95
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.433070866141732
Outer Ring Width - Millimeter:	11
Overall Width - in:	0.4331
Overall Width - mm:	11
Precision class:	ISO Normal/ABEC1
Relubricatable:	No
Retainer Material:	Cold Rolled Steel
Rolling Element:	Ball
Row Type:	Single
Self Aligning:	No
Series:	16000
Snap Ring:	No
Static Load Rating:	3934.15649275582
