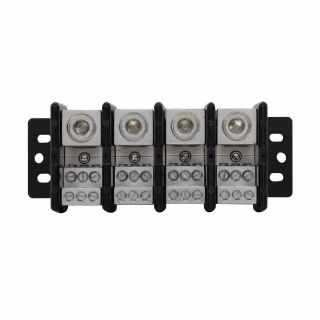

Picture of 16023-4 BSF
Actual Product May Vary From Image

16023-4 BSF

Bussmann 16023-4 Standard Power Distribution Block, 600 VAC/VDC, 310 A, 4 Poles, 6 AWG to 350 kcmil Cu/Al Line, (6) 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, Thermoplastic
Manufacturer: Bussmann
Manufacturer part number: 16023-4
Availability: Expected Leadtime 24 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$428.90

Product Details

Brand Name

Bussmann

Type

Standard

Description

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).
Bussmann Power Distribution Block, Standard, Series: 160, 600 VAC/VDC, 310 A, 4 Pole, 6 AWG to 350 kcmil Cu/Al Line, (6) 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 6.62 in L x 2.8 in W x 2.12 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 53787 Guide XCFR2 | RoHS Compliant | UL 1059 File No. E221592 | UL 94 V-0 Flammability Rating

Features

Rated for dual wire port application to increase the possible number of line side and load side connections

Specifications

Amperage Rating:310 A
Color:Black
Country of Origin:MX
Dimensions:6.62 in L x 2.8 in W x 2.12 in H
Material:Thermoplastic
Number of Poles:4
Series:160
Short Circuit Current Rating:10 kA
Voltage Rating:600 VAC/VDC
Wire Size:6 AWG to 350 kcmil Aluminum/Copper Line, (6) 14 to 4 AWG Copper, 12 to 4 AWG Aluminum Load
