Actual Product May Vary From Image

160EET BSF

Name: 160EET BSF
Brand: Bussmann
SKU: 160EET BSF
Availability: OutOfStock

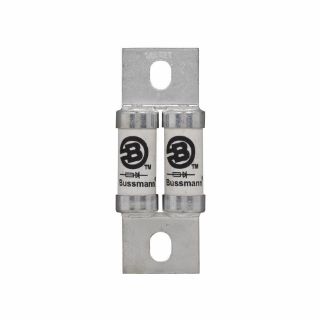

Bussmann 160EET British Standard High Speed Fuse, 160 A, 690 VAC, 200 kAIC Interrupt, Round Body

Manufacturer: Bussmann

Manufacturer part number: 160EET

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard

Description

Not surprisingly, this mounting Type has found its use mainly, but not exclusively, in the United Kingdom and British Commonwealth countries. Also, North American manufacturers have begun to specify British Style fuses (particularly in applications like UPS equipment with voltages of 240 VAC or less) due to their size, performance and cost advantages. The dimensions given in the BS88 standard for high speed fuses are not physically interchangeable with industrial fuse standard.

Bussmann High Speed Fuse, British Standard, Series: EET, Indicating/Non-Indicating: Non-Indicating, 160 A, 690 VAC, 200 kAIC Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Round Body Type, Single Element, Ceramic, 94 mm L x 37 mm W x 19 mm H Body Size

Application

Power Distribution and Control, Electrical Assemblies, Panels and EOEM - Electrical Assemblies/Panels/EOEMs - Aftermarket: Electrical Assemblies, Panels and EOEM - Panel Builders: Electrical Assemblies, Panels and EOEMs: Electrical Assemblies, Panels and EOEM - Control Panels for Machines , Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications

Standards

CE Certified | IEC 269 | RoHS Compliant | UL Listed | UL Recognized

Features

Excellent cycling capability
Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
BS88 style bolted tags high speed fuse
39 W power loss
Low arc voltage, excellent cycling capacity, excellent DC performance, power loss 39 W

Specifications

Amperage Rating:	160 A
Body Size:	94 mm L x 37 mm W x 19 mm H
Body Type:	Round
Country of Origin:	IN
Element:	Single
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Material:	Ceramic
Mounting Type:	Stud
Series:	EET
Terminal Type:	Blade End
Voltage Rating:	690 VAC
