160FEE BSF

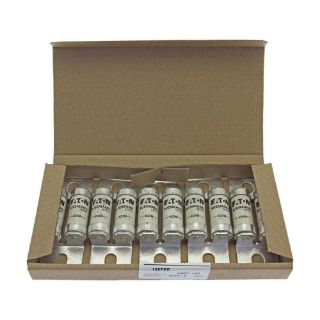

Bussmann 160FEE British Standard High Speed Fuse, 160 A, 690 V, 200 kA Interrupt, Class: AR, Cartridge Body
Manufacturer: Bussmann
Manufacturer part number: 160FEE
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

British Standard

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann High Speed Fuse, British Standard, Series: FEE, Non-Indicating, 160 A, 690 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 94 mm L x 37 mm W x 19 mm H Body

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

BS 88 Part 4 | CCC Certified | CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Listed | UL Recognized

Features

  • Excellent cycling capability
  • Excellent DC performance
  • Low arc voltage and low energy let through
  • BS88 style bolted tags high speed fuse
  • Low wattage loss
  • 200 kA at AC, 50 kA at 500 VDC interrupt rating
  • 46 W power loss

Specifications

Amperage Rating:160 A
Body Size:94 mm L x 37 mm W x 19 mm H
Body Type:Cartridge
Class:AR
Country of Origin:IN
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:Stud
Series:FEE
Terminal Type:Blade
Voltage Rating:690 V
