Actual Product May Vary From Image

160H-5 O/L MOR

Name: 160H-5 O/L MOR
Brand: Regal Rexnord
SKU: 160H-5 O/L MOR
Availability: OutOfStock

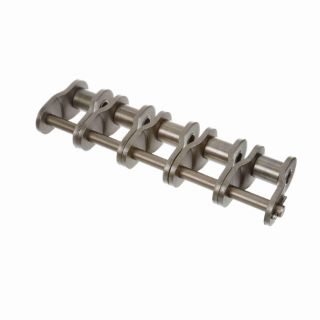

Morse® 324262 Heavy Duty Offset Link With Cotter Pin, 160 Chain, 2 in Pitch, 12.395 in OAW, 0.562 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 324262

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Heavy Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Heavy Duty, 160 Chain, 2 in Pitch, 12.395 in Overall Width, 0.562 in Pin Dia, 1.866 in Link Plate Height, 0.281 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

5-strands

Specifications

Chain Size:	160
Country of Origin:	CN
Link Plate Height:	1.866 in
Link Plate Thickness:	0.281 in
Material:	Steel
Overall Width:	12.395 in
Pin Diameter:	0.562 in
Pitch:	2 in
