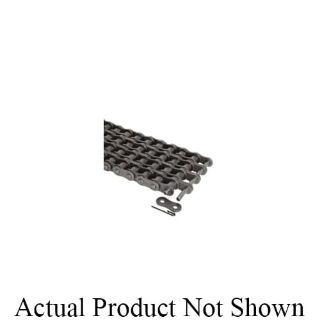

Actual Product May Vary From Image

160H-5R 10FT MOR

Name: 160H-5R 10FT MOR
Brand: Regal Rexnord
SKU: 160H-5R 10FT MOR
Availability: OutOfStock

Morse® 371968 Heavy Duty Riveted Roller Chain, 10 ft OAL, 2 in Pitch, 1-1/8 in Dia x 1-1/4 in W Roller, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 371968

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Heavy Duty Riveted

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Heavy Duty Riveted, 2 in Pitch, 0.562 in Pin Diameter, 12.395 in Pin Length, 1-1/8 in Roller Diameter, 1-1/4 in Roller Width, 1.866 in Plate Height, 0.281 in Plate Thickness, 1 Links, 5 Strands, 290000 lb Tensile Strength, 10 ft Overall Length, Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Unmatched quality and performance
Far exceeds ANSI performance standard
Rigid manufacturing processes result in a fully-featured chain

Specifications

Country of Origin:	CN
Material:	Steel
Number of Links:	1
Number of Strands:	5
Overall Length:	10 ft
Pin Diameter:	0.562 in
Pin Length:	12.395 in
Pitch:	2 in
Plate Height:	1.866 in
Plate Thickness:	0.281 in
Roller Diameter:	1-1/8 in
Roller Width:	1-1/4 in
Tensile Strength:	290000 lb
