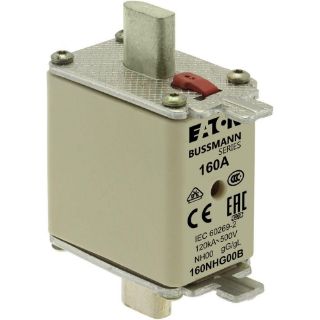

Picture of 160NHG00B BSF
Actual Product May Vary From Image

160NHG00B BSF

Bussmann 160NHG00B Size 00 Dual Indication Square Class gG/gL NH Fuse Link With Metal Gripping Lugs, 500 V, 160 A, Ceramic
Manufacturer: Bussmann
Manufacturer part number: 160NHG00B
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Size 00 Dual Indication Square Class gG/gL

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 00 Dual Indication Square Class gG/gL, 500 V, 160 A, 47/63 Hz, Rated Breaking Capacity: 120 kA, Holder Mount, Ceramic, 78.5 mm L x 30 mm W

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Industrial Applications, Safety and Security Systems

Standards

CCC Certified | CE Certified | DIN 43620 | IEC 60269 | RoHS Compliant | UL Listed | VDE 0636

Features

  • Reliable dual indicator system
  • Low temperature rise
  • Live gripping lugs

Specifications

Amperage Rating:160 A
Country of Origin:IN
Dimensions:78.5 mm L x 30 mm W
Frequency Rating:45 to 62 Hz
Material:Ceramic
Mounting Type:Holder
Rated Breaking Capacity:120 kA
Series:NHG
Suitable For Use With:NH Series Class C gG/gL Fuse
Voltage Rating:500 V
