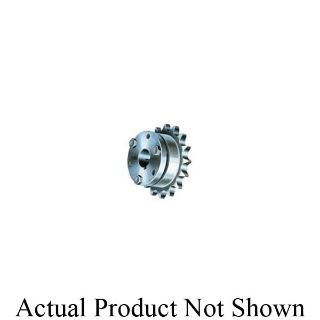

Actual Product May Vary From Image

160U70 BRN

Name: 160U70 BRN
Brand: Regal Rexnord
SKU: 160U70 BRN
Availability: OutOfStock

Browning® 1173269 Single Strand Roller Chain Sprocket, 2-3/8 in Dia Bore, 45.745 in OD, #160 Chain, 70 Teeth, 2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1173269

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 2-3/8 in Bore Dia, 45.745 in Outside Dia, #160 Chain, 70 Teeth, 2 in Pitch, 44.578 in, 8.365 in Hub Dia, 4-15/16 in Length Through Bore, Type 6 Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 2 in pitch ANSI chain

Specifications

Bore Diameter:	2-3/8 in
Bushing Type:	Type 6 Split Taper
Chain Size:	#160
Country of Origin:	CN
Hub Diameter:	8.365 in
Length Through Bore:	4-15/16 in
Material:	Steel
Number of Teeth:	70
Outside Diameter:	45.745 in
Pitch:	2 in
Pitch Diameter:	44.578 in
