16101-2RS TKN

Name: 16101-2RS TKN
Brand: Timken
SKU: 16101-2RS TKN
Price: 45.83 USD
Availability: OutOfStock

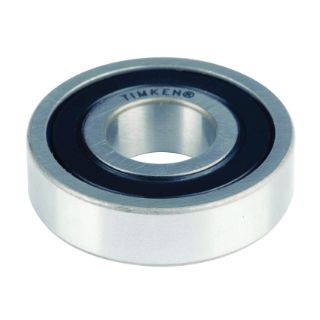

ISO Deep Groove Radial Ball Bearing

Manufacturer: Timken

Manufacturer part number: 16101-2RS

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$45.83

Qty:

Product Details

Brand Name

Timken

Description

Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

ISO Deep Groove Radial Ball Bearing | 12 mm 0.5 in Bore | 30 mm 1.2 in OD

Features

Super finished raceways
Quiet operations
ISO standard interchangeable dimensions
Electric Motor Quality (EMQ)
Narrow series design has a smaller width, relative to standard designs, for uses in space constrained applications | Contact seal(s) offer superior lubricant retention and bearing protection from contaminants

Specifications

Bearing Material:	STEEL
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	0.4724
Bore Size (ID) - mm:	12
Bore Type:	Straight
Closure (Seal) type:	Two Contact Seals
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	1146.52560981
Fillet Radius - Inch:	0.0118110236220472
Fillet Radius - Millimeter:	0
Inner Ring Width - Inch:	0.31496062992126
Inner Ring Width - Millimeter:	8
Internal Clearance:	C0
Load Rating UOM:	LB
Lubrication Hole/Groove:	No
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/deep-groove/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Operating RPM (Grease):	22000
Maximum Operating RPM (Oil):	33000
Operating Temperature Max:	120° C
Operating Temperature Min:	-40° C
Outer Diameter - in:	1.1811
Outer Diameter - mm:	30
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.31496062992126
Outer Ring Width - Millimeter:	8
Overall Width - in:	0.315
Overall Width - mm:	8
Precision class:	ISO Normal/ABEC1
Relubricatable:	No
Retainer Material:	Cold Rolled Steel
Rolling Element:	Ball
Row Type:	Single
Self Aligning:	No
Series:	16100
Snap Ring:	No
Static Load Rating:	539.54146344
