1614DCTNTG18 RBC

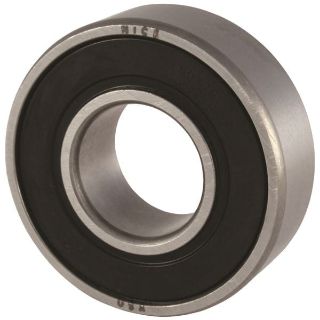

Nice® 1614DCTNTG18 1600® Non-Fill Slot Precision Deep Groove Ball Bearing, 3/8 in Dia Bore, 1-1/8 in OD, 1 Rows, 3/8 in W, 475 lb Load
Manufacturer part number: 1614DCTNTG18
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$28.90

Product Details

Brand Name

Nice®

Type

Non-Fill Slot

Description

Precision ground 1600® Series bearings are specially designed to provide a line of low cost yet high quality bearings for adaptation to a majority of precision bearing applications. They are made in easy to use inch dimensions and are recommended for medium loads and for maximum speeds in the range of 5000 rpm. The 1600® Series bearings are precision ground on all surfaces with exceptional care given to the ball grooves. Careful heat treatment provides a uniform and exact degree of hardness for maximum life. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction.
Nice® Precision Deep Groove Ball Bearing, Non-Fill Slot, Series: 1600®, 3/8 in Bore, 1-1/8 in OD, 1 Rows, 3/8 in Width, Double Seal Closure, 475 lb Load, 52100 Steel Bearing, Nylon Cage, 5000 rpm Maximum, -40 to 284 deg F, Chrome Steel

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ABEC-1 | ASPR | CAS | DFAR | FAR Standards

Features

  • Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
  • Pregreased with metered Shell Alvania #2 grease
  • Double sealed to keep grease in and contaminants out
  • Standard design for maximum application versatility
  • 1200 lb dynamic/475 lb static

Specifications

Bearing Material:52100 Steel
Bore Diameter:3/8 in
Cage Material:Nylon
Closure Type:Double Seal
Country of Origin:US
Finish:Chrome Steel
Load Capacity:475 lb
Maximum Speed:5000 rpm
Number of Rows:1
Outside Diameter:1-1/8 in
Series:1600®
Temperature Rating:-40 to 284 deg F
Width:3/8 in
