16204-3 BSF

Name: 16204-3 BSF
Brand: Bussmann
SKU: 16204-3 BSF
Price: 121.02 USD
Availability: OutOfStock

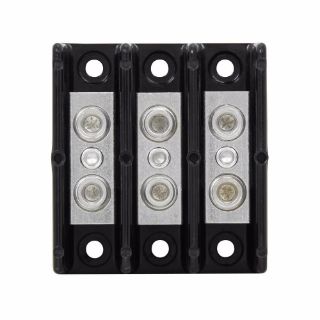

Bussmann 16204-3 Barrier Power Splicer Block, 600 VAC/VDC, 175 A, 3 Poles, 8 to 2/0 AWG Cu/Al Line/Load Wire, Aluminum/Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16204-3

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$121.02

Qty:

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Bussmann Power Splicer Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, 8 to 2/0 AWG Cu/Al Line/Load Wire, 200 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 2.7 in L x 2.88 in W x 1.75 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 6228-01/53787 | RoHS Compliant | UL File No. E221592/1059 | UL Guide XCFR2

Features

8 to 2/0 AWG copper/aluminum line/load connection

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Dimensions:	2.7 in L x 2.88 in W x 1.75 in H
Finish:	Tin Plated
Material:	Aluminum/Thermoplastic
Number of Poles:	3
Primary Connections/Pole:	1
Secondary Connection/Pole:	1
Series:	162
Short Circuit Current Rating:	200 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	8 to 2/0 AWG
