Actual Product May Vary From Image

16220-3H BSF

Name: 16220-3H BSF
Brand: Bussmann
SKU: 16220-3H BSF
Price: 217.19 USD
Availability: OutOfStock

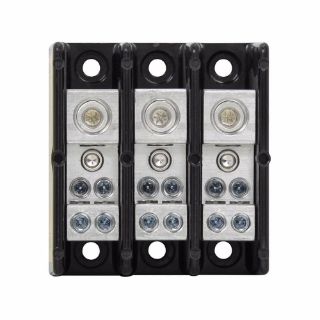

Bussmann 16220-3H Barrier Power Distribution Block, 600 VAC/VDC, 175 A, 3 Poles, Aluminum/Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16220-3H

Availability: Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$217.19

Qty:

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Power Distribution Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 2.7 in L x 2.88 in W x 1.75 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA Certified | RoHS Compliant | UL Listed

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Dimensions:	2.7 in L x 2.88 in W x 1.75 in H
Finish:	Tin Plated
Material:	Aluminum/Thermoplastic
Number of Poles:	3
Series:	162
Short Circuit Current Rating:	100 kA
Voltage Rating:	600 VAC/VDC
