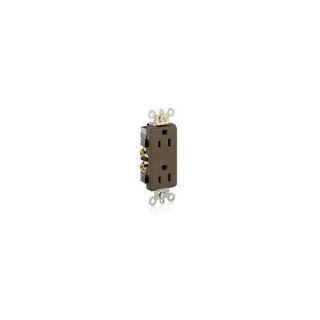

Actual Product May Vary From Image

16252 LEV

Name: 16252 LEV
Brand: Leviton Manufacturing
SKU: 16252 LEV
Availability: OutOfStock

Decora® Plus 16252 Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16252

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Duplex

Alternate Supplier #

Grainger - 5HZF9

Description

Leviton® line of Heavy Duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 4.06 in H x 1.52 in W x 1.14 in D Dimensions

Standards

ANSI C-73 | CSA C22.2 No. 42 File No. LR-406 | NOM 057 | UL 498 File No. E13399 | UL 94 Flammability Rating

Features

Back wire and side wire terminal options
Heavy gauge locked-in wraparound strap
Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
Brass staked on self-grounding clip
Heavy duty triple-wipe brass contacts for long service life
Impact-resistant thermoplastic construction

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	MX
Dimensions:	4.06 in H x 1.52 in W x 1.14 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Horsepower:	1/2 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
