Actual Product May Vary From Image

16262-IGW LEV

Name: 16262-IGW LEV
Brand: Leviton Manufacturing
SKU: 16262-IGW LEV
Availability: OutOfStock

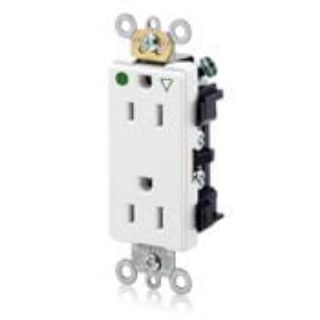

Decora® Plus 16262-IGW 1-Phase Extra Heavy Duty Isolated Ground Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16262-IGW

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Phase Extra Heavy Duty Isolated Ground

Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

Decora® Plus Straight Blade Duplex Receptacle, 1-Phase Extra Heavy Duty Isolated Ground, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.52 in W x 1.14 in D Dimensions

Application

Commercial Applications

Standards

Features

Durable thermoplastic face in an array of contemporary colors
Receptacles have a locked in mounting strap with a self-grounding clip riveted to the strap
Hospital grade Tamper-resistant receptacles include a unique shutter mechanism that opens easily for the insertion of 2 or 3-prong plugs while preventing entry by other small objects into either outlet slot
Hospital grade isolated ground receptacles protect sensitive electronic equipment and eliminate electromagnetic interference by providing a separate path to ground
Power Indication™ meets UL 498 hospital grade identification requirements

Specifications

Amperage Rating:	15 A
Color:	White
Country of Origin:	MX
Dimensions:	4.06 in H x 1.52 in W x 1.14 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Hospital
Horsepower:	1/2 hp
Material:	Nylon
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
