Actual Product May Vary From Image

16280-3-M BSF

Name: 16280-3-M BSF
Brand: Bussmann
SKU: 16280-3-M BSF
Availability: OutOfStock

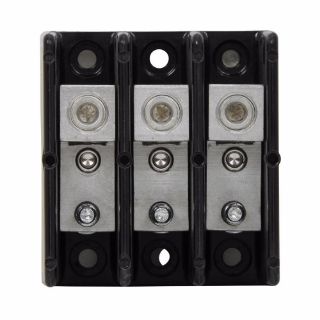

Bussmann 16280-3-M Power Terminal Block, 600 VAC/VDC, 175 A, 3 Poles, 14 to 2/0 AWG Cu/Al Line Wire, Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16280-3-M

Availability: Expected Leadtime 84 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Power Terminal Block, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 14 to 2/0 AWG Cu/Al Line Wire, 200 kA Short Circuit Current Rating, Thermoplastic, Black, 2.84 in L x 1.69 in W x 2.62 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA File No. 53787 | RoHS Compliant | UL 1059/508A File No. E221592 Guide XCFR2 | UL 94 V-0 Flammability Rating

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Dimensions:	2.84 in L x 1.69 in W x 2.62 in H
Material:	Thermoplastic
Number of Poles:	3
Secondary Connection/Pole:	(1) 1/4-20 x 3/4 in Stud
Series:	162
Short Circuit Current Rating:	200 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 2/0 AWG Cu/Al Line
