16332-3 BSF

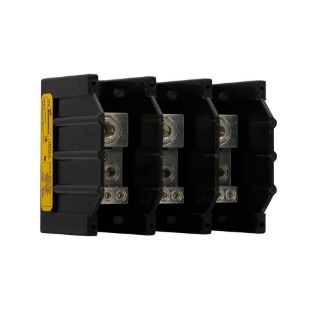

Bussmann 16332-3 Barrier Power Distribution Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Aluminum/Thermoplastic
Manufacturer: Bussmann
Manufacturer part number: 16332-3
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 1
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$317.25

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 3 Pole, 1 Primary Connections/Pole, 5 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

CE Certified | CSA 6228-01/53787 | RoHS Compliant | UL 1059 | UL 508A | UL 94-V-0 Flammability Rating | UL File No. E221592 | UL Guide XCFR2

Features

6 AWG to 350 kcmil copper/aluminum line side, 14 to 2 AWG, 14 to 1/0 AWG copper, 8 to 2 AWG, 8 to 1/0 AWG aluminum load side wire

Specifications

Amperage Rating:310 A
Color:Black
Country of Origin:MX
Dimensions:5.21 in L x 4 in W x 3.32 in H
Finish:Tin Plated
Material:Aluminum/Thermoplastic
Number of Poles:3
Primary Connections/Pole:1
Secondary Connection/Pole:3
Series:163
Short Circuit Current Rating:10 kA
Voltage Rating:600 VAC/VDC
Wire Size:6 AWG to 350 kcmil
