16352-2PE LEV

Name: 16352-2PE LEV
Brand: Leviton Manufacturing
SKU: 16352-2PE LEV
Availability: OutOfStock

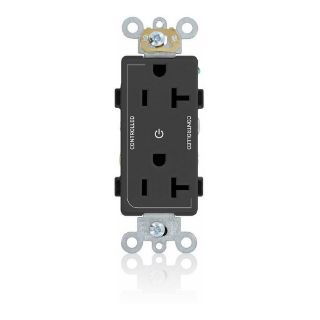

Decora® Plus 16352-2PE Heavy Duty Self Grounding Straight Blade Duplex Receptacle With 2 Plug Controlled Markings, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16352-2PE

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Heavy Duty Self Grounding

Description

Leviton® offers custom imprinting solutions to meet the 2014 national electrical code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. These receptacles that are automatically controlled will be marked with a specific symbol.

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Black, 3.81 in H x 1.71 in W x 1.07 in D Dimensions

Standards

ANSI (C73) | CSA C22.2 No. 42 | NOM-ANCE | UL 498 Listed

Features

Hot Terminal Split
Back wire and side wire terminal options
Withstands 2000 VAC per UL498 dielectric voltage
Heavy gauge locked-in wraparound strap
Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
Brass staked on self-grounding clip
Heavy duty triple-wipe brass contacts for long service life
Impact-resistant thermoplastic construction

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.81 in H x 1.71 in W x 1.07 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Horsepower:	1 hp
Material:	PBT Polyester Blend
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
