Actual Product May Vary From Image

16400 BSF

Name: 16400 BSF
Brand: Bussmann
SKU: 16400 BSF
Availability: OutOfStock

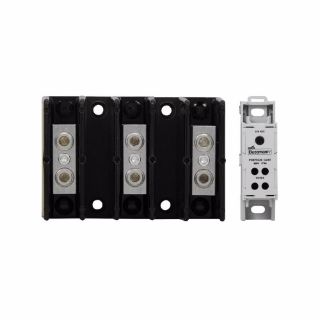

Bussmann 16400 Power Distribution Block, 600 VAC/VDC, 1520 A, 1 Pole, 14 to 10 AWG Line, 3/0 to 1/0 AWG Load Wire, Aluminum/Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16400

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

Bussmann Power Distribution Block, 600 VAC/VDC, 1520 A, 1 Pole, 4 Primary Connections/Pole, 22 Secondary Connection/Pole, 14 to 10 AWG Line, 3/0 to 1/0 AWG Load Wire, Aluminum/Thermoplastic, Tin Plated, Black, 4 in W x 3.32 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

CSA Certified | UL 508A/1059 | UL 94-V-0

Features

500 in-lb line side, 35 in-lb load side torque

Specifications

Amperage Rating:	1520 A
Color:	Black
Country of Origin:	MX
Dimensions:	4 in W x 3.32 in H
Finish:	Tin Plated
Material:	Aluminum/Thermoplastic
Number of Poles:	1
Primary Connections/Pole:	4
Secondary Connection/Pole:	22
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 10 AWG Line, 3/0 to 1/0 AWG Load
