16451-I LEV

Name: 16451-I LEV
Brand: Leviton Manufacturing
SKU: 16451-I LEV
Availability: OutOfStock

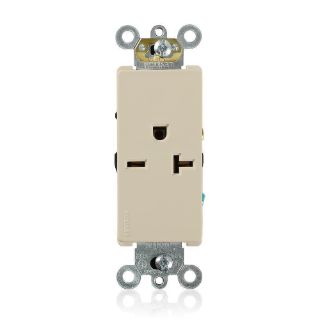

Decora® Plus 16451-I 1-Phase Heavy Duty Self-Grounding Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16451-I

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Phase Heavy Duty Self-Grounding

Description

Decora® Plus Straight Blade Single Receptacle, 1-Phase Heavy Duty Self-Grounding, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.52 in W x 1.14 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | NOM 057 Certified | UL 498 | UL File No. E13399 | UL 94

Features

Back-wire and Side wire terminal options
Heavy gauge locked in wraparound strap
Back-wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
Brass staked on self-grounding clip
Heavy duty triple-wipe brass contacts for long service life
Impact-resistant thermoplastic construction

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	MX
Dimensions:	46 in H x 1.52 in W x 1.14 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Horsepower:	2 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 6-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	250 VAC
