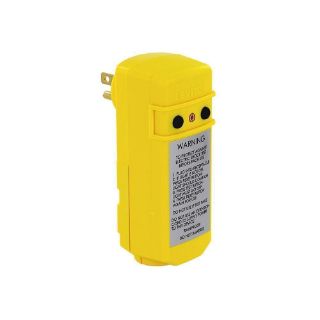

Picture of 16694-1 LEV
Actual Product May Vary From Image

16694-1 LEV

Leviton® 16694-1 Compact Manual Reset Right Angle GFCI Plug With Green LED Indicator, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Leviton Manufacturing
Manufacturer part number: 16694-1
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Compact Manual Reset Right Angle

Description

Portable GFCI devices from Leviton® are now sleeker and more rugged than ever and while these devices are fully OSHA compliant for use on job sites, they are also perfect for use in a variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps, vending machines and more.
Leviton® GFCI Plug, Compact Manual Reset Right Angle, 125 VAC, 15 A, 0.75 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15P, Commercial/Residential Grade, -35 to 66 deg C, Hot/Ground/Neutral Terminal, Polycarbonate, Yellow, 4.482 in L x 1.675 in W x 1.729 in D Dimensions

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42/144 | UL943 Class A/498

Features

  • Manual reset models require manual actuation to restore power to the connected equipment
  • Polycarbonate, ultrasonically welded body provides long service life and excellent resistance to harsh weather
  • Terminal chamber sealed with silicon and foam rubber gaskets for superior protection against moisture
  • Accepts 12/3 through 18/3 AWG types SJ and ST cords
  • Ground pin down with green LED indicator
  • Cof yellow with black test/reset buttons
  • Rainproof design with load side wiring chamber having screw terminals and built-in strain relief
  • To be wired only with 3-conductor flexible cord
  • Open neutral protection rated

Specifications

Amperage Rating:15 A
Color:Yellow
Country of Origin:CN
Dimensions:4.482 in L x 1.675 in W x 1.729 in D
Frequency Rating:60 Hz
Grade:Commercial/Residential
Horsepower:0.75 hp
Material:Polycarbonate
NEMA Rating:NEMA 5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Hot/Ground/Neutral
Voltage Rating:125 VAC
