Actual Product May Vary From Image

16B17 MSG

Name: 16B17 MSG
Brand: Martin Sprocket & Gear
SKU: 16B17 MSG
Price: 134.20 USD
Availability: OutOfStock

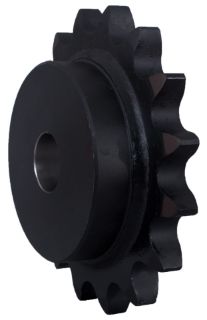

Martin 16B17 Type B Single Strand Stock Bore Welded Roller Chain Sprocket, 25 to 71 mm Dia Bore, 154.107 mm OD, #16B-1 Chain, 17 Teeth, 25.4 mm Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 16B17

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$134.20

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Stock Bore Welded

Description

Metric B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 25 to 71 mm Bore, 154.107 mm OD, #16B-1 Chain, 17 Teeth, 25.4 mm Pitch, 138.232 mm Pitch Diameter, 100.609 mm Diameter Hub, 45 mm Length Through Bore, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	25 to 71 mm
Chain Size:	#16B-1
Country of Origin:	US
Hub Diameter:	100.609 mm
Length Through Bore:	45 mm
Material:	Steel
Number of Teeth:	17
Outside Diameter:	154.107 mm
Pitch:	25.4 mm
Pitch Diameter:	138.232 mm
