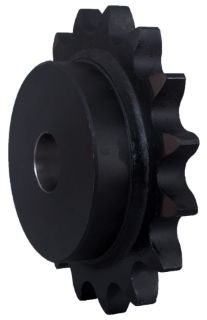

Actual Product May Vary From Image

16B22 MSG

Name: 16B22 MSG
Brand: Martin Sprocket & Gear
SKU: 16B22 MSG
Price: 206.74 USD
Availability: OutOfStock

Martin 16B22 Type B Single Strand Stock Bore Welded Roller Chain Sprocket, 25 to 75 mm Dia Bore, 194.353 mm OD, #16B-1 Chain, 22 Teeth, 25.4 mm Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 16B22

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$206.74

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Stock Bore Welded

Description

Metric B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 25 to 75 mm Bore, 194.353 mm OD, #16B-1 Chain, 22 Teeth, 25.4 mm Pitch, 178.478 mm Pitch Diameter, 106.782 mm Diameter Hub, 50 mm Length Through Bore, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	25 to 75 mm
Chain Size:	#16B-1
Country of Origin:	US
Hub Diameter:	106.782 mm
Length Through Bore:	50 mm
Material:	Steel
Number of Teeth:	22
Outside Diameter:	194.353 mm
Pitch:	25.4 mm
Pitch Diameter:	178.478 mm
