16D21-G LEV

Name: 16D21-G LEV
Brand: Leviton
SKU: 16D21-G LEV
Availability: OutOfStock

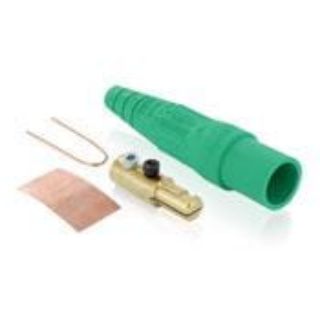

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton

Manufacturer part number:

16D21-G

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Cam Type Detachable Taper Nose

Description

Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.

Leviton® Plug, Cam Type Detachable Taper Nose, Series: 16 Series, 600 VAC, 300 A, 2 to 2/0 AWG Wire, Male/Single Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, 1.72 in Dia, Green, 7 in L x 1.84 in H Dimensions

Application

Commercial, Industrial, Concerts, Movie-making, Sound Stages, Sporting Events and Conventions and Television Production Applications

Standards

CSA 152105 | UL File No. E13399

Features

Taper nose, cam type plug designed for commercial applications to provide superior service
Self compensating for wear
Insulated by shatter and crack-resistant Santoprene™ TPV making it ideal for both outdoor and indoor applications
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration proof connection provided by cam design
Copper wire strain-relief
Locking and reinforcing ring won't melt, break or crack
NEMA 3R rated (rainproof) for use outdoors
600 VAC voltage rating

Specifications

Amperage Rating:	300 A
Color:	Green
Connection Type:	Male/Single Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	7 in L x 1.84 in H
Housing Material:	Santoprene™ TPV
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	1-Pole, 1.72 in Dia
Voltage Rating:	600 VAC
Wire Size:	2 to 2/0 AWG
