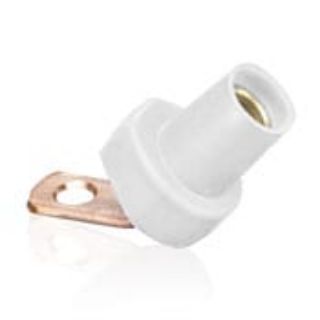

Actual Product May Vary From Image

16F21-W LEV

Name: 16F21-W LEV
Brand: Leviton Manufacturing
SKU: 16F21-W LEV
Availability: OutOfStock

Leviton® Rhino-Hide® 16F21-W 16 Series Cam Type Female Taper Nose Single Pole Connector, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16F21-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Female Taper Nose

Description

Leviton® Rhino-Hide® Single Pole Connector, Cam Type Female Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, Solid Brass Contact, Santoprene TPV Housing Material, NEMA 3R NEMA Rating, Panel Mounting, Specifications: Angled Termination, 194 deg F, White, 2.8 in L x 2.28 in H Dimensions

Application

Concerts, Sound Stages, Movie Making, Television Production, Sporting Events, Conventions, Commercial and Industrial Applications

Standards

UL File No. E13399 | CSA File No. 152105

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring wont melt, break or crack
Shatter and crack proof high durometer thermoplastic elastomer (TPE) or neoprene rubber
Color coded insulating sleeves provide fast and easy phase identification
Prevents arcing or burning no movement of contact surfaces
Self compensating for wear slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration proof connection provided by double cam design
Wide range of applications usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	White
Connection Type:	Screw Terminal
Contact Material:	Solid Brass
Country of Origin:	MX
Dimensions:	2.8 in L x 2.28 in H
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	Angled Termination
Temperature Rating:	194 deg F
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
