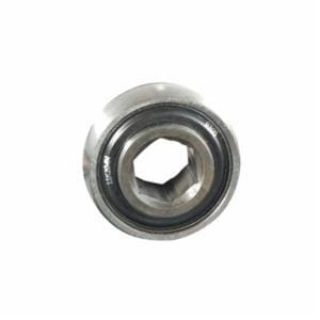

Actual Product May Vary From Image

16KB206H LBB

Name: 16KB206H LBB
Brand: Rexnord
SKU: 16KB206H LBB
Availability: OutOfStock

Link-Belt® 16KB206H 200 Standard Duty Unmounted Hex Bore Ball Bearing, 1 in Dia Bore, 2.4409 in OD, 0.6299 in W, 4390 lb Dynamic/2530 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 16KB206H

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard Duty Unmounted

Description

Link-Belt® Hex Bore Ball Bearing, Standard Duty Unmounted, Series: 200, 1 in Bore Dia, 2.4409 in Outside Dia, 0.6299 in Width, 4390 lb Dynamic/2530 lb Static Load, Alloy Steel Bearing, 8000 rpm Maximum, -40 to 225 deg F

Features

Outside diameter of outer ring is cylindrical
Non-relubricatable
Clearance seal
Precision deep groove ball bearings or quality alloy bearing steel provide high capacity and long life

Specifications

Bearing Material:	Alloy Steel
Bore Diameter:	1 in
Country of Origin:	MX
Load Capacity:	4390 lb Dynamic/2530 lb Static
Maximum Speed:	8000 rpm
Outside Diameter:	2.4409 in
Series:	200
Temperature Rating:	-40 to 225 deg F
Width:	0.6299 in
