16NHG000B-690 BSF

Name: 16NHG000B-690 BSF
Brand: Bussmann
SKU: 16NHG000B-690 BSF
Availability: OutOfStock

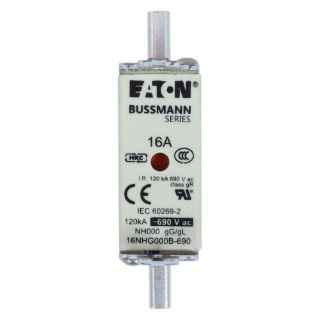

Bussmann 16NHG000B-690 Size 000 Dual Indicator Low Voltage NH Fuse Link, 690 VAC, 16 A, For Use With NH Series Class C/gG/gL Fuse, Ceramic

Manufacturer: Bussmann

Manufacturer part number: 16NHG000B-690

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Size 000 Dual Indicator Low Voltage

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NH Series, 690 VAC, 16 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: NH Series Class C/gG/gL Fuse, Ceramic, 78.5 mm L

Application

Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems

Standards

CCC Certified | CE Certified | RoHS Compliant | UL Listed

Features

Size 000

Specifications

Amperage Rating:	16 A
Dimensions:	78.5 mm L
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	120 kAIC
Series:	NH Series
Suitable For Use With:	NH Series Class C/gG/gL Fuse
Voltage Rating:	690 VAC
