Actual Product May Vary From Image

16NZ01R BSF

Name: 16NZ01R BSF
Brand: Bussmann
SKU: 16NZ01R BSF
Availability: OutOfStock

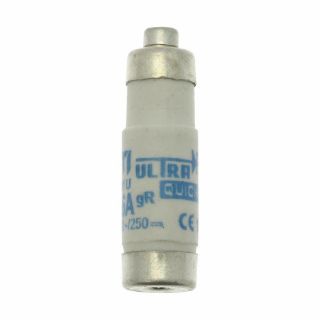

Bussmann 16NZ01R Low Voltage D0 Ultra Rapid Fuse, 16 A, 400 VAC, Class: gR

Manufacturer: Bussmann

Manufacturer part number: 16NZ01R

Availability: Expected Leadtime 71 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Low Voltage D0 Ultra Rapid

Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount

Bussmann Fuse, Low Voltage D0 Ultra Rapid, Indicating/Non-Indicating: Non-Indicating, 16 A, 400 VAC, Class: gR, Ceramic, Gray, 11 mm H Body Size

Application

Power Distribution and Control, Electrical Assemblies, Panels and EOEM - Control Panels for Machines: Electrical Assemblies, Panels and EOEM - Electrical Assemblies/Panels/EOEMs - Aftermarket: Electrical Assemblies, Panels and EOEM - Electrical Assemblies, Panels and EOEMs: Electrical Assemblies, Panels and EOEM - Electrical Assemblies and EOEMs, Electrical Assemblies, Panels and EOEM - Panel Builders , Stationary Machine Equipment In Factory - Robotics, Domestic and General Industrial Applications

Standards

CE Certified | GoST-R Certified | IEC 60269 | VDE Certified

Features

Special Features: Ultra-rapid
Package Type: Standard
Quantity: 10 per package
Breaking Capacity: 50 kA
Weight: 0.036 kg
Prod Size: D01
Height: 11 mm
Indicator: Non-Indicating
Warranty: 1 Year Limited

Specifications

Amperage Rating:	16 A
Body Size:	11 mm H
Class:	gR
Color:	Gray
Indicating/Non-Indicating:	Non-Indicating
Material:	Ceramic
Voltage Rating:	400 VAC
