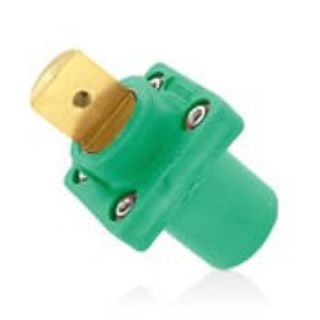

Actual Product May Vary From Image

16R19-G LEV

Name: 16R19-G LEV
Brand: Leviton Manufacturing
SKU: 16R19-G LEV
Availability: OutOfStock

Leviton® 16R19-G 16 Series 90 deg Male Single Pole Receptacle With Half Round Tapped Terminal, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R19-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Male

Description

Leviton's 16 Series Taper Nose Cam-Type Devices are rated up to 400-Amp, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Receptacle, 90 deg Male, Series: 16 Series, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Santoprene TPV Housing Material, NEMA 3R NEMA Rating, Panel Mounting, Green

Application

For power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions

Standards

UL File No. E13399 | CSA File No. 152105

Features

Self compensating for wear
Taper nose configuration
Cam type connector
Industrial grade
Color-coded insulators for easy phase identification

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Screw Terminal
Contact Material:	Brass
Country of Origin:	MX
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC/VDC
Wire Size:	2 to 4/0 AWG
