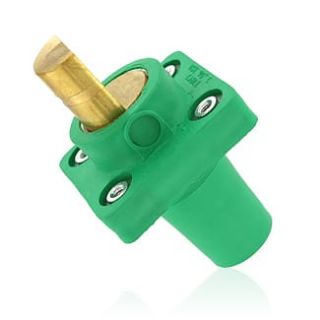

Actual Product May Vary From Image

16R20-G LEV

Name: 16R20-G LEV
Brand: Leviton Manufacturing
SKU: 16R20-G LEV
Availability: OutOfStock

Leviton® 16R20-G 16 Series 90 deg Cam Type Male Taper Nose Single Pole Receptacle, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R20-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Cam Type Male Taper Nose

Description

Leviton® 16 series taper nose cam type devices are rated up to 400-Amp, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Receptacle, 90 deg Cam Type Male Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal, Brass Contact, TPV Housing, NEMA 3R, Panel Mount, 86 deg F, Green, 2.8 in L x 2.28 in H

Application

Commercial Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof high durometer thermoplastic elastomer or neoprene rubber
Color coded insulating sleeves for fast and easy phase identification
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration proof connection provided by double cam design
Usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Screw Terminal
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.8 in L x 2.28 in H
Housing Material:	TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
