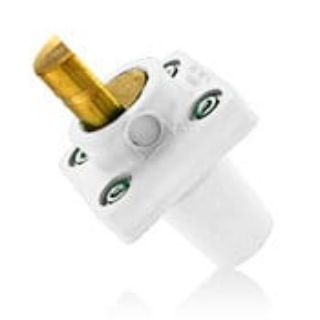

Actual Product May Vary From Image

16R20-W LEV

Name: 16R20-W LEV
Brand: Leviton Manufacturing
SKU: 16R20-W LEV
Availability: OutOfStock

Leviton® Rhino-Hide® 16R20-W 16 Series Cam Type Female Single Pole Receptacle With Tapped Hole, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R20-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Female

Description

Our 16 Series Taper Nose Cam-Type Devices are rated up to 400 A, making them the devices of choice for power distribution applications such as construction sites, mining operations, welding, cell tower backup power, concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Rhino-Hide® Single Pole Receptacle, Cam Type Female, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Santoprene TPV Housing Material, NEMA 3R NEMA Rating, Panel Mounting, White, 2.8 in L x 2.28 in H Dimensions

Application

Commercial and Outdoor Applications

Standards

CSA 152105 | UL 1691 File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design
Wide range of applications usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	White
Connection Type:	Screw Terminal
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.8 in L x 2.28 in H
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
