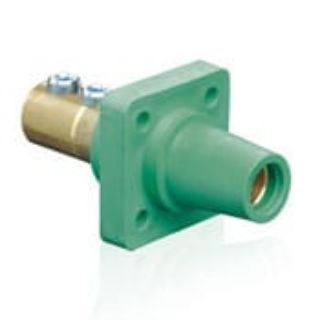

16R22-G LEV

Name: 16R22-G LEV
Brand: Leviton
SKU: 16R22-G LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton

Manufacturer part number:

16R22-G

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Female Insulated

Description

Leviton 16 series taper nose cam-type devices are rated up to 400 A, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Cam Receptacle, Female Insulated, Series: 16 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw, Brass Contact, Santoprene™ TPV Housing, NEMA 3R, Panel Mount, 1-1/2 in Hole to Hole Spacing, 4-Hole, Green, 2.81 in L x 2.25 in H

Application

Commercial and Industrial Applications

Standards

CSA 152105 | UL File No. E13399

Features

Double cam design provides a high conductivity, positive, vibration proof connection
Santoprene™ TPV insulator is shatter and crack proof
Color coded insulators for easy phase identification
Can be retrofitted to existing locations and power distribution systems
Hard thermoplastic screw provides strength and durability
Tapered nose with 90 deg angled elevation

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.81 in L x 2.25 in H
Housing Material:	Santoprene™ TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	1-1/2 in Hole to Hole Spacing, 4-Hole
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
