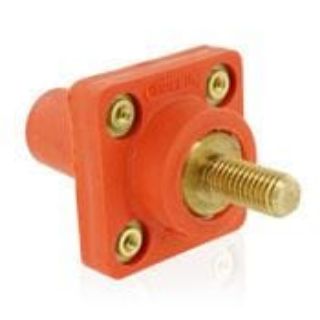

Actual Product May Vary From Image

16R26-11O LEV

Name: 16R26-11O LEV
Brand: Leviton Manufacturing
SKU: 16R26-11O LEV
Availability: OutOfStock

Rhino-Hide® 16R26-11O 16 Series Cam Type Female Taper Nose Single Pole Receptacle With Self-Clinching PEM Nuts-Mounting Plate, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R26-11O

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Female Taper Nose

Description

Leviton® single pole panel receptacles are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and high performance TPV insulators, these devices are ideal for use in equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications. Our unique 45 deg angle version is perfect for applications where cables protruding 90 deg from the panel is impractical. These Leviton® 16 series single pole panel receptacles and accessories are UL/CSA listed and are completely interoperable and interchangeable with any competitive cam type plugs and receptacles.

Rhino-Hide® Single Pole Receptacle, Cam Type Female Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, TPV Housing, NEMA 3R, Panel Mount, 1-1/8 in L Threaded/Stud, 86 deg F, Brown, 2-1/4 in H x 2-1/4 in W

Application

Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding and Repair and Other Temporary Power Applications, Entertainment and Movie Industry, Concerts and Theme Parks, Carnival Equipment and Conventions Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof - high durometer thermoplastic elastomer (TPE) or neoprene rubber
Color coded insulating sleeves for fast and easy phase identification
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration-proof connection provided by double cam design
Wide range of applications - usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	Brown
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2-1/4 in H x 2-1/4 in W
Housing Material:	TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	1-1/8 in L Threaded Stud
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
